6×12+7FC Steel Wire Rope.

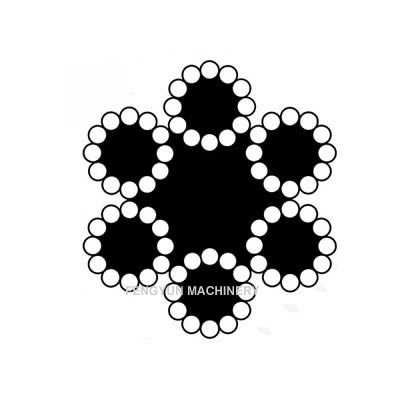

6*12+7FC, the steel wire rope has 6 strands, 12 steel wires per each, 72 steel wires in total, 7 fiber cores, this kind of steel wire rope is very soft.
Used for bundling items, but the breaking force is relatively small, generally not used for lifting wire rope.
| Construction | 6×12-7 FC |
| Surface Finished | Galvanized |
| Application | Tugboat, Cargo Net, Floating of Wood, Fish Net Dragging and Bind. |
| Origin | China |
| Nominal Dia. (mm) | Approx. Weight (kg/100m) | Nominal Tensile Strength(MPa) | |
| 1570 | 1770 | ||
| FC | MBS (KN) | ||
| 8 | 16.1 | 21 | 23.7 |
| 9 | 20.3 | 26.6 | 30.o |
| 9.3 | 21.7 | 28.4 | 32 |
| 10 | 25.1 | 32.8 | 37 |
| 11 | 30.4 | 39.7 | 44.8 |
| 12 | 36.1 | 47.3 | 53.3 |
| 12.5 | 39.2 | 51.3 | 57.8 |
| 13 | 42.4 | 55.5 | 62.5 |
| 14 | 49.2 | 64.3 | 72.5 |
| 15.5 | 60.3 | 78.8 | 88.9 |
| 16 | 64.3 | 84 | 94.7 |
| 17 | 72.5 | 94.8 | 107 |
| 18 | 81.3 | 106 | 120 |
| 18.5 | 95.9 | 112 | 127 |
| 20 | 100 | 131 | 148 |
| 21.5 | 116 | 152 | 171 |
| 22 | 121 | 159 | 179 |
| 24 | 145 | 189 | 213 |
| 24.5 | 151 | 197 | 222 |
| 26 | 170 | 222 | 250 |
| 28 | 197 | 257 | 290 |
| 32 | 257 | 336 | 379 |
