Stainless Steel Screw Pin Bow Shackle European Type.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, it is widely used for industrial, agricultural and marine applications.
The screw pin allows for easy connect or disconnect and with a hole in the pin of the anchor shackle, it allows for the shackle to be wired shut.
Screw Pin Bow Shackle is popular in saddlery, bridles, harnesses, scuba diving, sailing, hiking, cycling, camping or climbing.
Sizes available from 4mm to 36mm.
| Technical Notes | European Type |
| Material | Stainless Steel AISI 304/AISI 316 |
| Processing | Forged / Stamping |
| Surface Finished | Highly Polishing / Electric Coating |
| Size |
4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm |
| Origin | China |
Specification- Stainless Steel Screw Pin Bow Shackle European Type

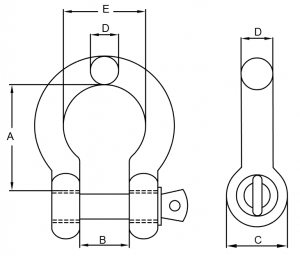

| SIZE | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | MBL (KN) |
| 4mm | 16 | 8 | 8 | 4 | 14 | 5.8 |
| 5mm | 19 | 10 | 10 | 5 | 16 | 9.1 |
| 6mm | 25 | 12 | 12 | 6 | 20 | 13.2 |
| 8mm | 32 | 16 | 16 | 8 | 24 | 23.7 |
| 10mm | 38 | 20 | 20 | 10 | 28 | 37.3 |
| 12mm | 48 | 24 | 24 | 12 | 36 | 54.9 |
| 14mm | 50 | 28 | 28 | 14 | 38 | 74.8 |
| 16mm | 55 | 32 | 32 | 16 | 10 | 97.7 |
| 18mm | 62 | 36 | 36 | 18 | 43 | 136.1 |
| 20mm | 68 | 40 | 40 | 20 | 46 | 184.7 |
| 22mm | 82 | 44 | 44 | 22 | 56 | 223.8 |
| 25mm | 95 | 50 | 50 | 25 | 68 | – |
| 28mm | 108 | 56 | 56 | 28 | 74 | – |
| 32mm | 120 | 64 | 64 | 32 | 84 | – |
| 36mm | 135 | 72 | 72 | 36 | 92 | – |
